Opening（inch）

Opening

 (mm)

Wire diameter (BWG)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

22,23,24

4"x4"

100mmx100mm

12,13,14,15,16

Galvanized welded wire mesh

Opening（inch）

Opening

(mm)

Wire Diameter (mm)

2" x 3"

50mm x 75mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mm x 75mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mm x 100mm

2.11mm,2.5mm

4" x 4"

100mm x 100mm

2.0mm,2.5mm

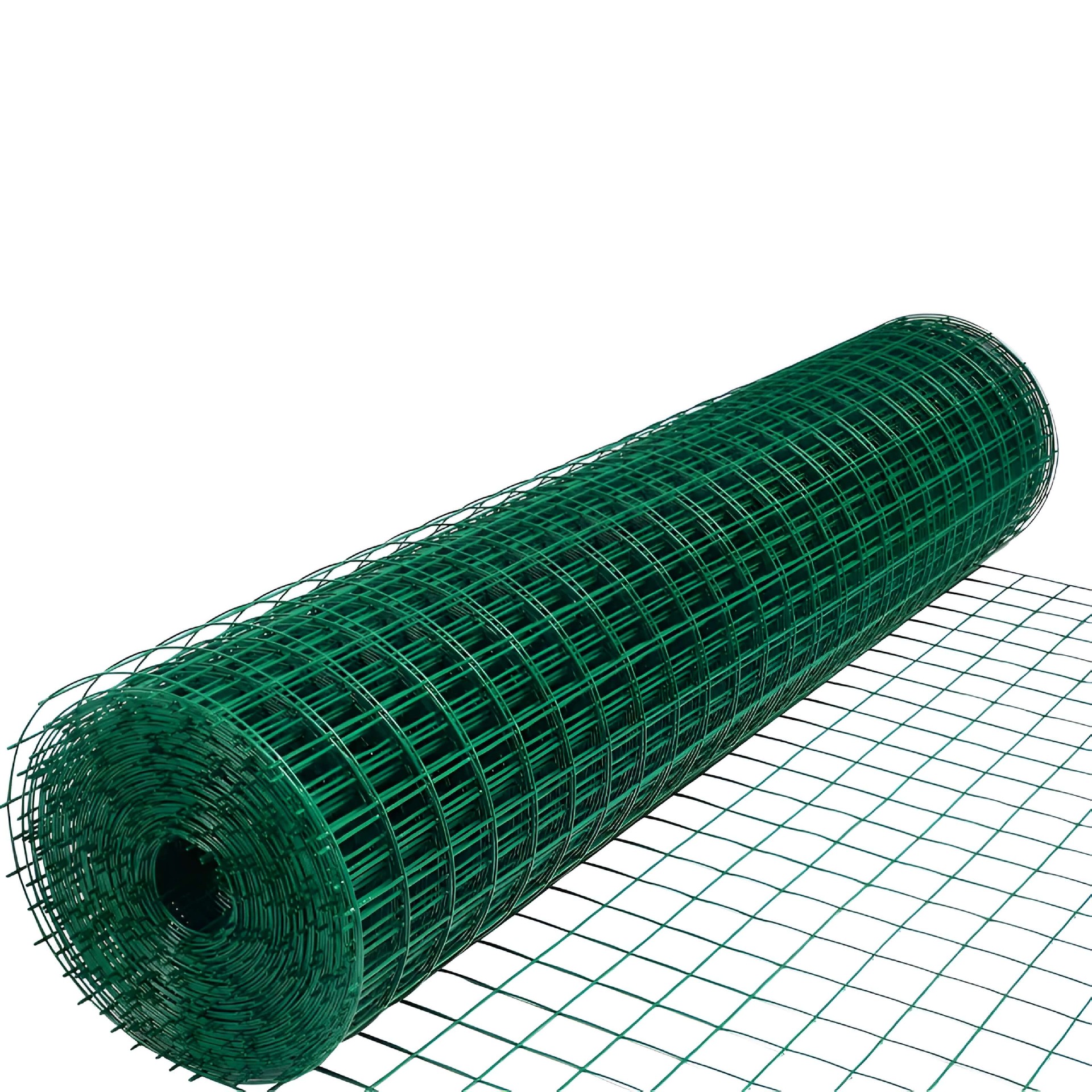

PVC coated welded wire mesh

Opening（inch）

Opening

(mm)

Wire diameter (BWG)

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21

3/4" x 3/4"

19mm x 19mm

16,17,18,19,20,21

1" x 1"

25.4mm x 25.4mm

15,16,17,18,19,20

Technical Note:
1.Standard roll of length: 30m

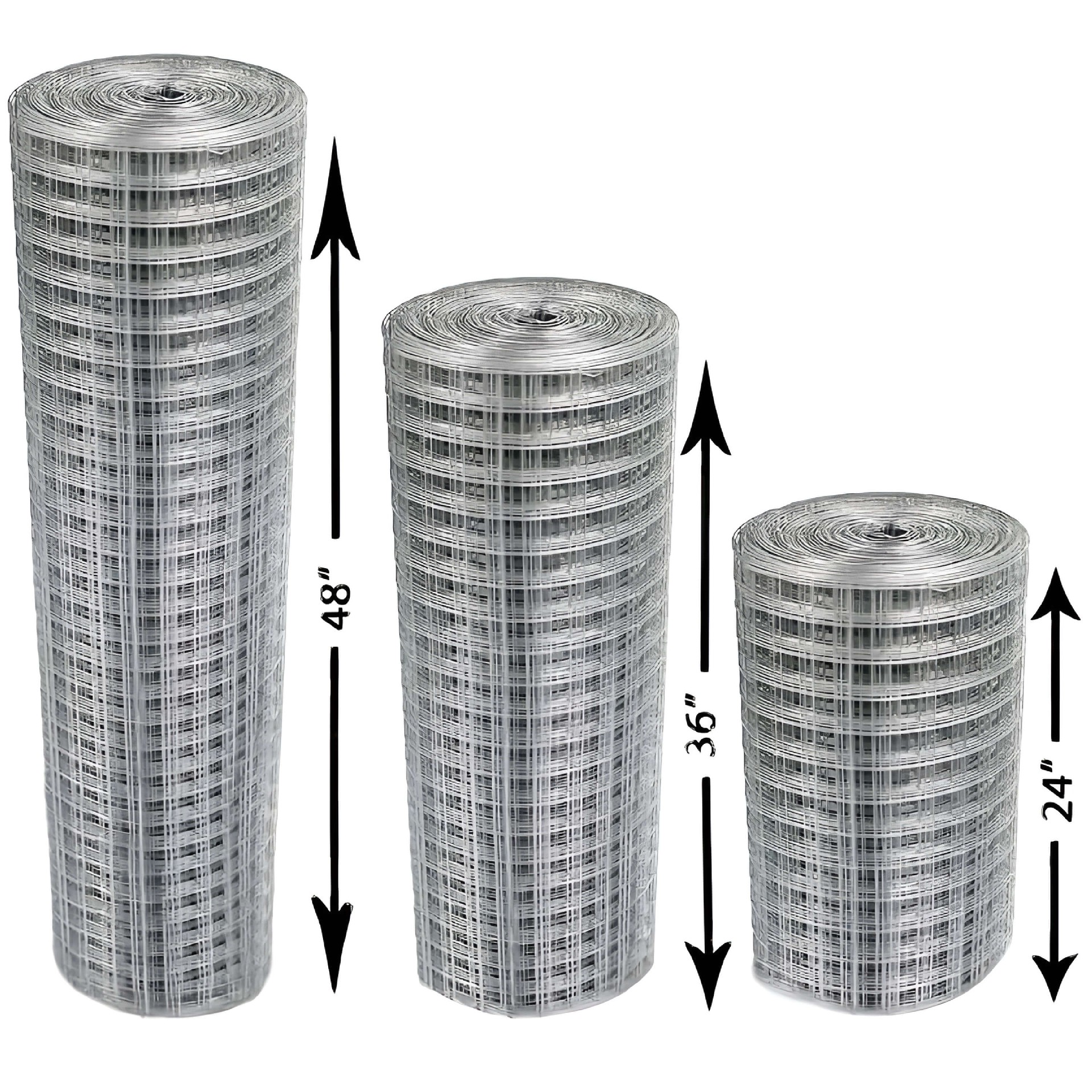

2.Standard roll of width: 0.5m to 2.1m
3.Special sizes available at request
4.Packing: wrapped with water proof paper,with metal/ wood pallet
